Product Introduction of Hospital Medical Checkup Self Service kiosk
The standard measurement items of SH-N15 fast health check integrated kiosk have Height, weight, BMI, blood pressure, heart rate, fat body composition, body temperature, blood oxygen, blood sugar, waist-to-hip ratio, TCM physical identification, vision test, mental health test, etc.
Technology of Hospital Medical Checkup Self Service kiosk
| Model | SH-N15 self service kiosk |
| HD touch screen | 15.0-inch high-definition touch screen can display the operation prompt interface and the test result. In the standby state, it can play health videos or pictures. |
| Standard measurement items | Height, weight, BMI, blood pressure, heart rate, fat body composition, body temperature, blood oxygen, blood sugar, waist-to-hip ratio, TCM physical identification, vision test, mental health test, etc. |
| Optional measurement items | Rapid ECG, 12-lead ECG, total uric acid cholesterol, alcohol test, etc. |
| Function configuration | Thermal printing, face recognition, identity recognition |
| Data transmission | Standard: WIFI, optional: Bluetooth, 4G, cloud transmission, etc. |
| Health report | Print receipt, A4 color/black and white report (optional) |
| Docking system | APP, public health system, HIS/LIS system, member management system, health software, etc. |
| Product specifications | Length * width * height: 1070mm*830mm* 2226.5mm Weight : 42KG |
| Applicable scene | Hospital ,Community,Health Hut ,Driver's medical examination , Bank ,Health station,Wisdom site,Primary care,Pension agency |

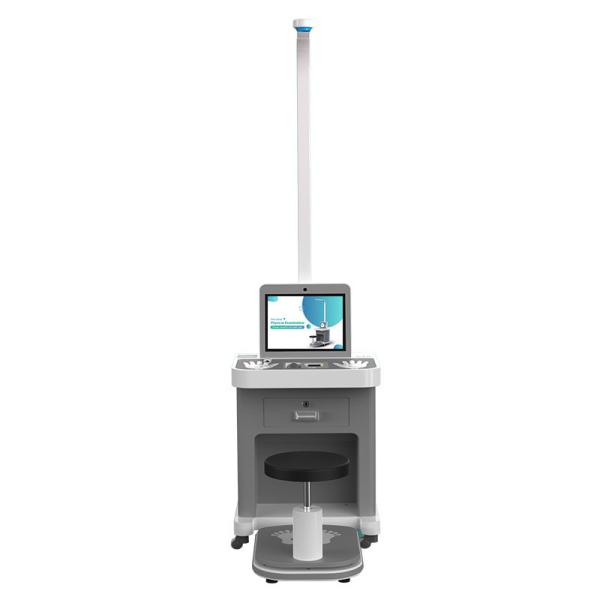

Pictures of Hospital Medical Checkup Self Service kiosk
Main Measuring Functions of Hospital Medical Checkup Self Service kiosk
1. 15.0 inch LCD touch screen:
Displayed Operation page and measurement results, play promotional videos and pictures in standby mode.
2.Print receipts
A4 black and white/color printing (optional)
3. Load cell :Measurement range:
2-200kg Measure accuracy:+0.1KG/+0.01KG
4. Easy to move:
The machine have wheels at the bottom,easy to transport and move
Identification Method of Hospital Medical Checkup Self Service kiosk
Face recognition login
Enter number:Mobile phone number, membership number, etc.
IC card/ID card reader (optional)
QR code /Bar code scanner(optional)
Data Transmission Method of Hospital Medical Checkup Self Service kiosk
RS232 data transfer
Wi-Fi
Bluetooth(optional)
4G(optional)
Cloud transmission(optional)
USB
FAQ
1.How long is the Warranty?
One year and endless online technical support.
2.Do you have certificates?
Yes, professional CE certificates.
3.Do you have MOQ?
No, You can order one sample for testing quality, factory price.
4.How to make sure of the quality guarantee? All of our machines need to pass safty test and tighten inspection, take hight temperature test for 4 hours in burn-in room before shipment
Two Printing Methods of self service kiosk
Thermal printer
A4 black and white/color printing (optional)
